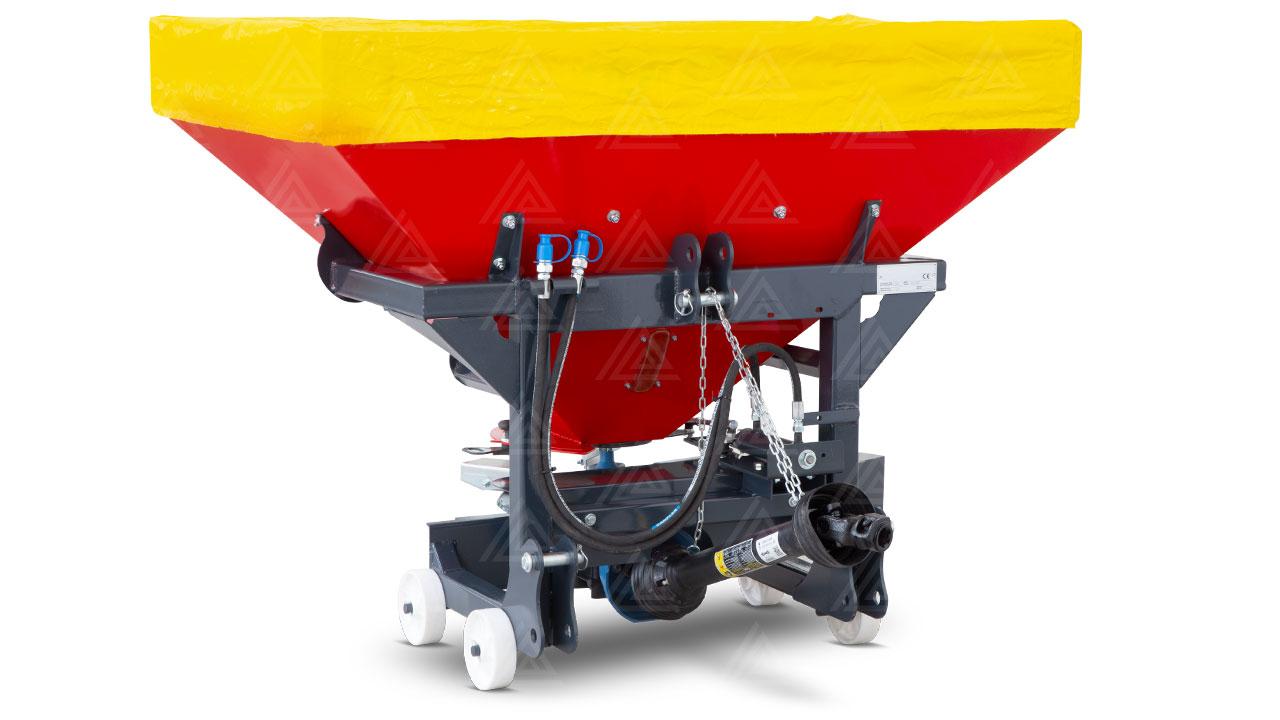

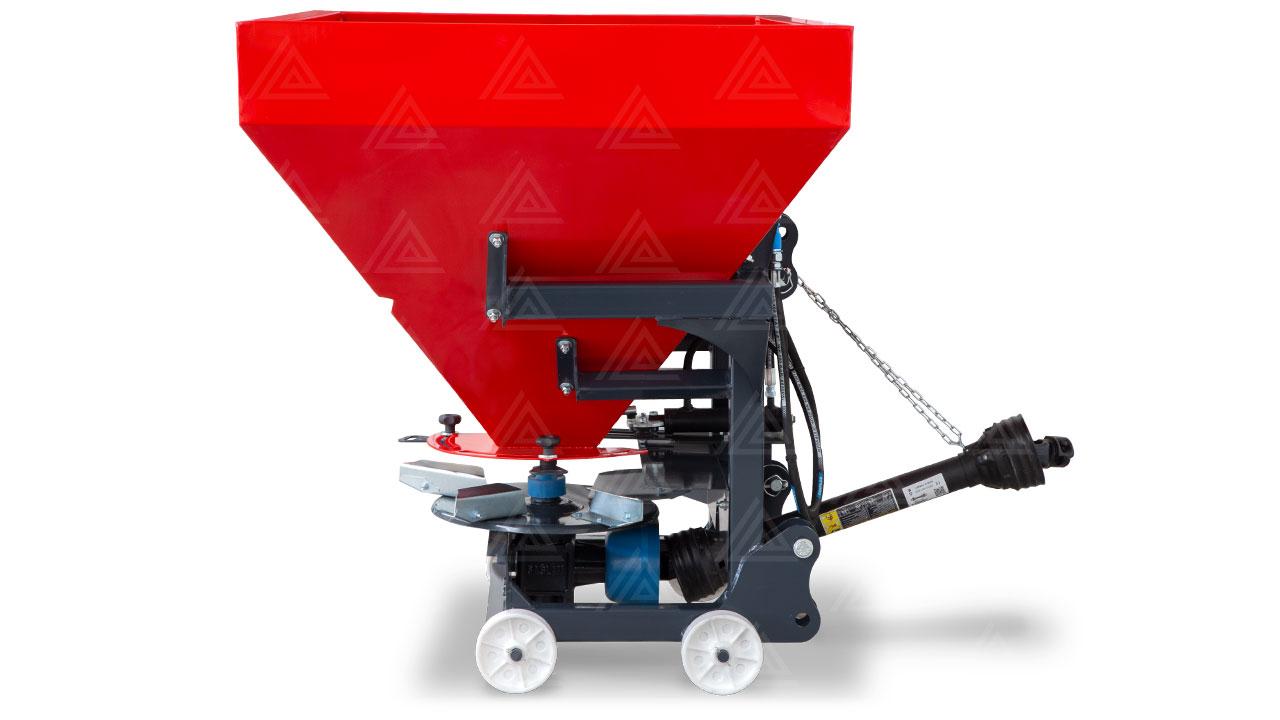

BOLU 1 CORNERED | Ateş Oto

Single disc Bolu Model fertilizer spreaders are mounted to tractor’s universal three point linkage system. Capacity of single disc spreaders are between 500-600-800-100 liters and the working with is 14m. Fertilizer spreading rate can be easily adjusted by means of the mechanical lever and shut off by means of mechanic or hydraulic ventils.

Technical Details	Unit	BOLU 1-500	BOLU 1-600
Hopper capacity	l	500	600
Number of discs	pcs	1	1
Working width	m	14	14
Total width (W)	mm	1400	1480
Total length (L)	mm	1060	1110
Total height (H)	mm	1200	1200
Category		II	II
Required power	hp	50–55	60–65
Transmission type		1.25/1	1.25/1
Mixing system		Vertical	Vertical
PTO rotation	rpm	540	540
Total weight	kg	135	140

Standart Özellikler

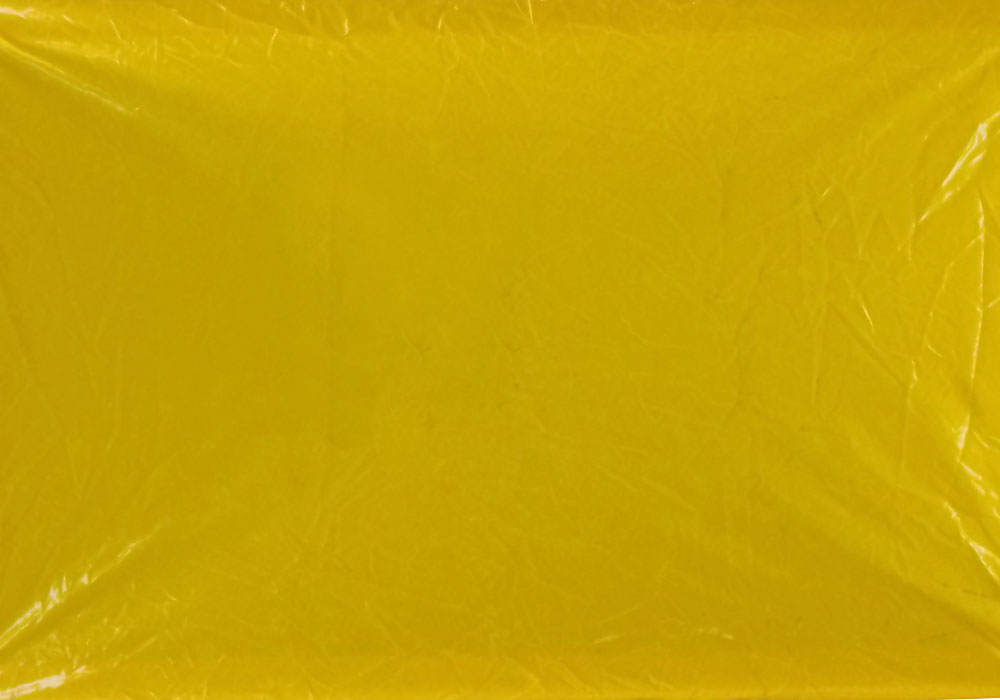

Tent
