SAMSUN

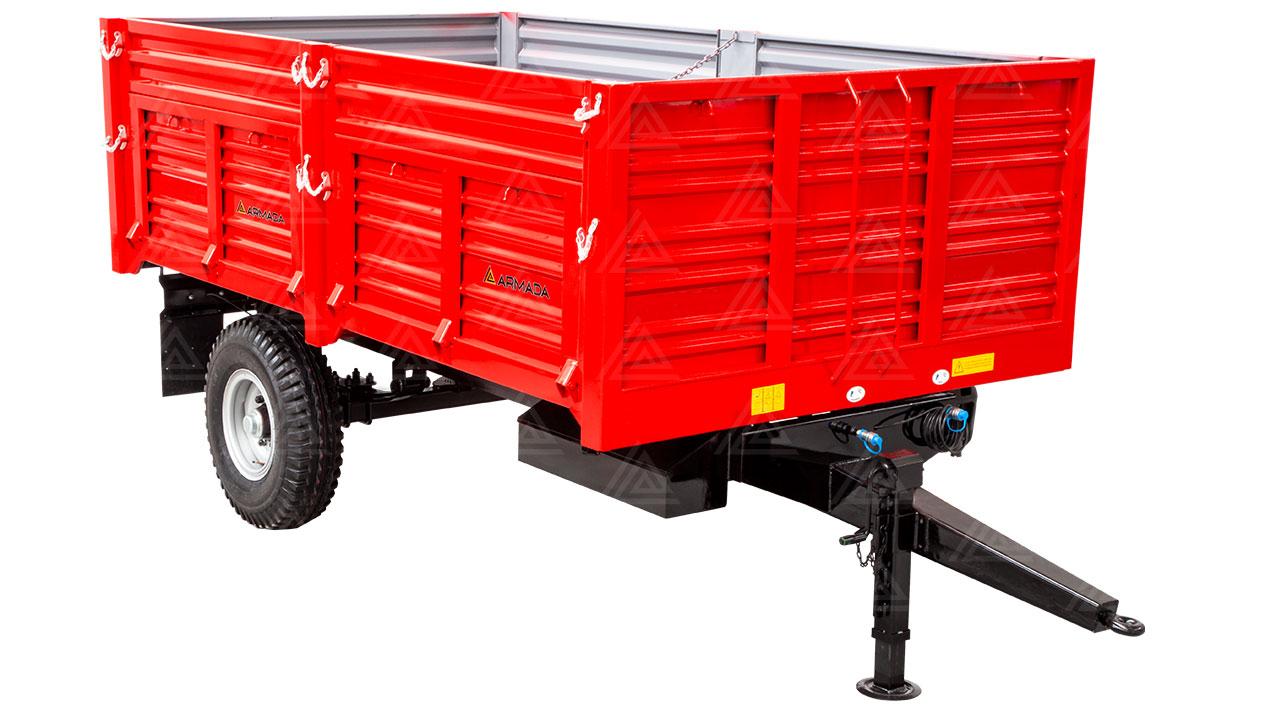

Single Axle Trailer

Trailers are manufactured as single and double axle and used for transporting of agricultural products and other purposes.

Technical Specifications*	Unit	SAMSUN 1000	SAMSUN 1500	SAMSUN 2500	SAMSUN 3000	SAMSUN 3500	SAMSUN 4000	SAMSUN 5000	SAMSUN 6000
Loading Capacity	kg	1000	1500	2500	3000	3500	4000	5000	6000
Total Width (W)	mm	1300	1300	1750	1850	1900	–	2000	–
Outer Size Width	mm	2300 × 1300	2500 × 1700	2750 × 1750	2850 × 1850	2900 × 1900	3000 × 2000	3500 × 2000	3750 × 2000
Inner Size Width	mm	2230 × 1230	2430 × 1630	2680 × 1680	2780 × 1780	2830 × 1830	2930 × 1930	3430 × 1930	3680 × 1930
Height of Door	mm	300	300	300	450	450	500	600	600
Additional Wall Height	mm	–	–	–	250	250	250	250	250
Number of Axle	pcs	1	1	1	1	1	1	1	1
Tyre Size	mm	600/16	600/16	750/16	750/16	750/16	900/16	900/16	900/16
Leaf Spring	pcs	2	2	2	2	2	2	2	2
Brake System		Mechanical / Hydraulic / Pneumatic	Mechanical / Hydraulic / Pneumatic	Mechanical / Hydraulic / Pneumatic	Mechanical / Hydraulic / Pneumatic	Mechanical / Hydraulic / Pneumatic	Mechanical / Hydraulic / Pneumatic	Mechanical / Hydraulic / Pneumatic	Mechanical / Hydraulic / Pneumatic
Fixed & Rear Tipper		Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Electric System		Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Required Power	hp	25	25–30	30–35	35–40	40–45	50–55	55–60	60–65
Weight	kg	–	–	650	–	1000	1150	1250	–
