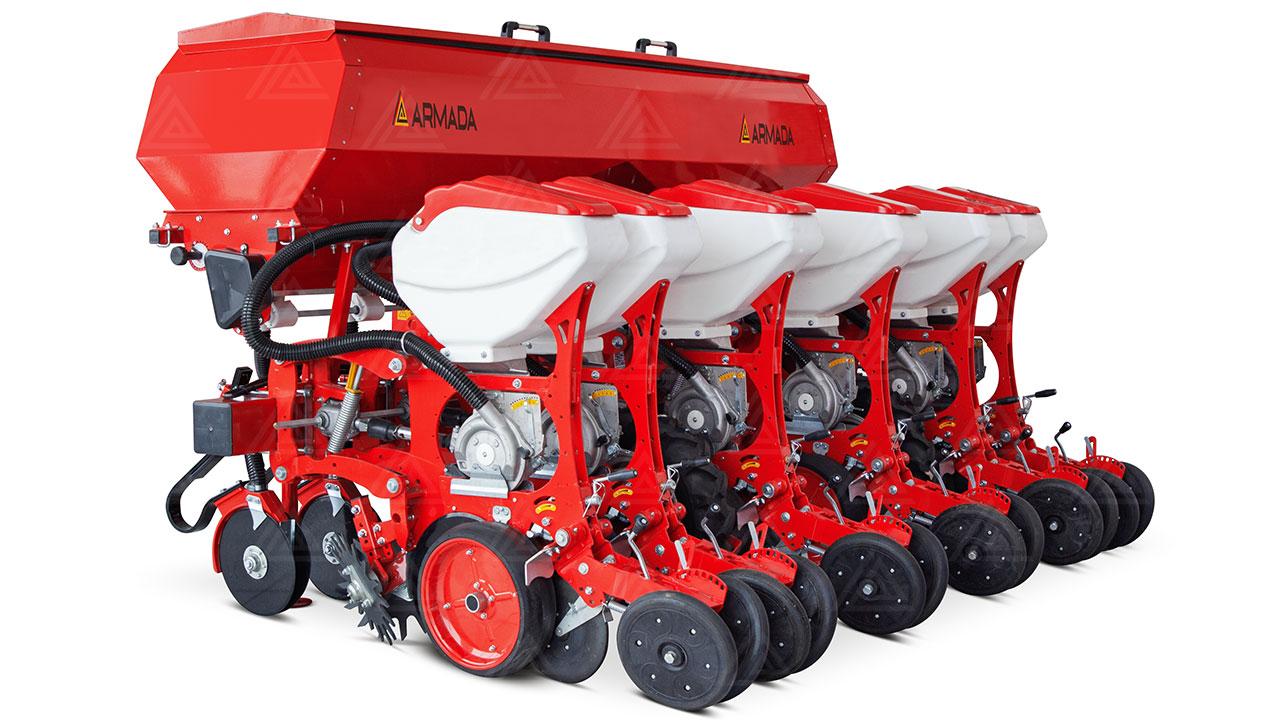

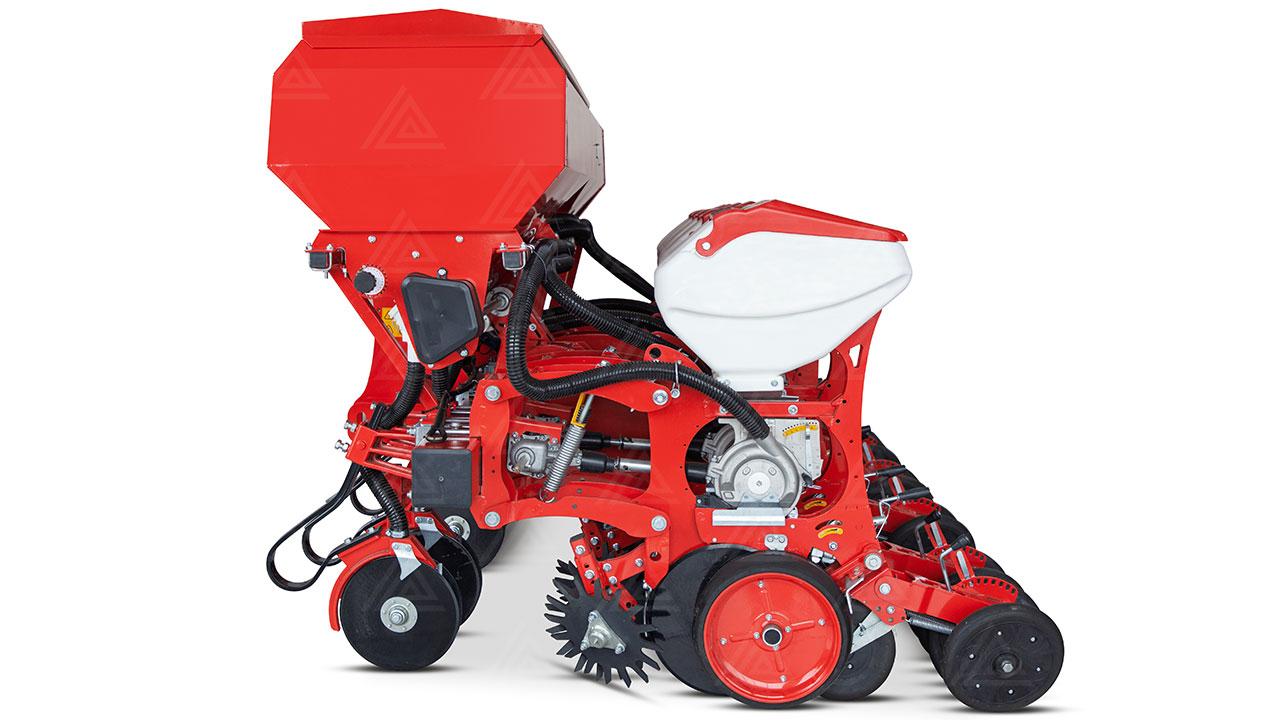

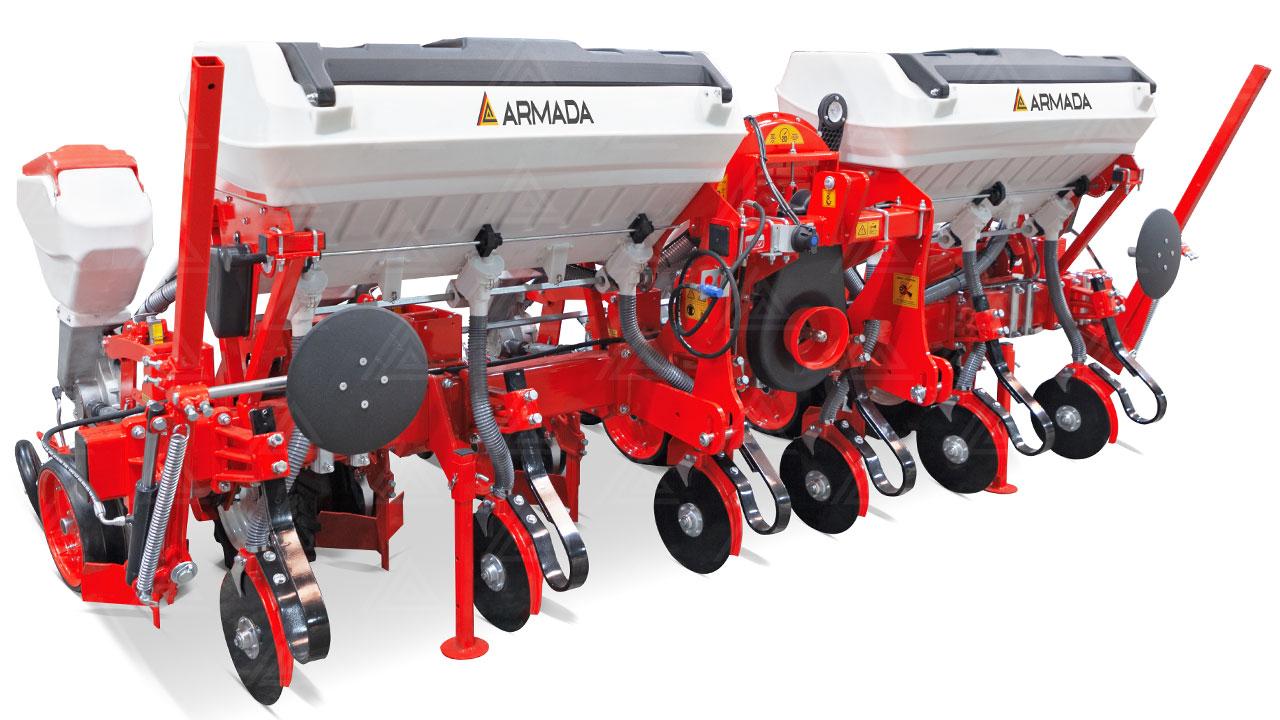

KONYA NDF | Ateş Oto

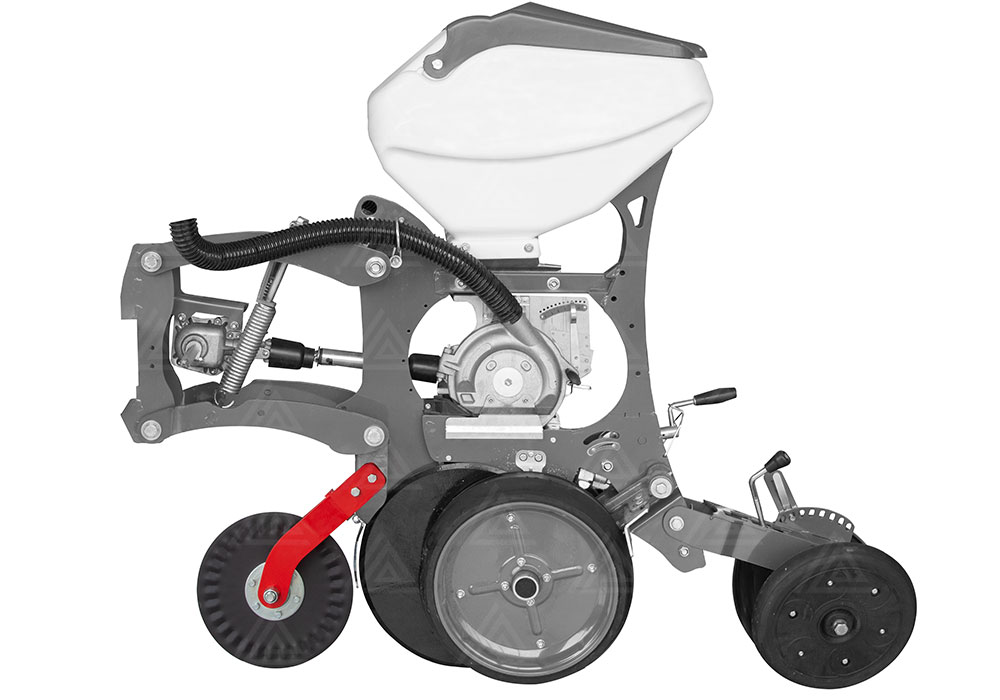

Armada no-till pneumatic precision planter enable the precise planting at the desired row spacing and intra-row distances. The machines can be manufactured with 4, 6, or 8 rows upon request. In the seeding units, the seed
furrow is opened by a disc mechanism. Each seeding unit is equipped with two discs made of special materials, ensuring accurate and uniform placement of seeds in the soil.

Details*	Unit	KONYA NTD 4	KONYA NTD 6	KONYA NTD 8
Number of Rows	pcs	4	6	8
Total Width (W)	mm	2800	4200	5600
Transport Width (W1)	mm	2800	3000	5600
Total Length (L)	mm	2000	2000	2000
Total Height (H)	mm	2050	2050	2050
Working Depth	mm	0-100	0-100	0-100
Fertilizer Hopper Capacity	L	160x2	200x2	160x4
Fertilizer Hopper Capacity (Big)	L	790	900	1248
Seed Hopper Capacity	dm³	40x4	40x6	40x8
Space Between Rows (B)	mm	450-800	450-800	450-800
Working Speed	km/h	4-8	4-8	4-8
PTO Rotation	rpm	540	540	540
Tyre Size	-	6.5X80-15	6.5X80-15	6.5X80-15
Required Power	hp	80-90	90-110	120-130
Weight with Fertilizer Hopper	kg	1300	1750	2400
Weight with Fertilizer Hopper (Big)	kg	1525	1875	2530
Weight without Fertilizer Hopper	kg	1030	1550	2100
