SEYHAN | Ateş Oto

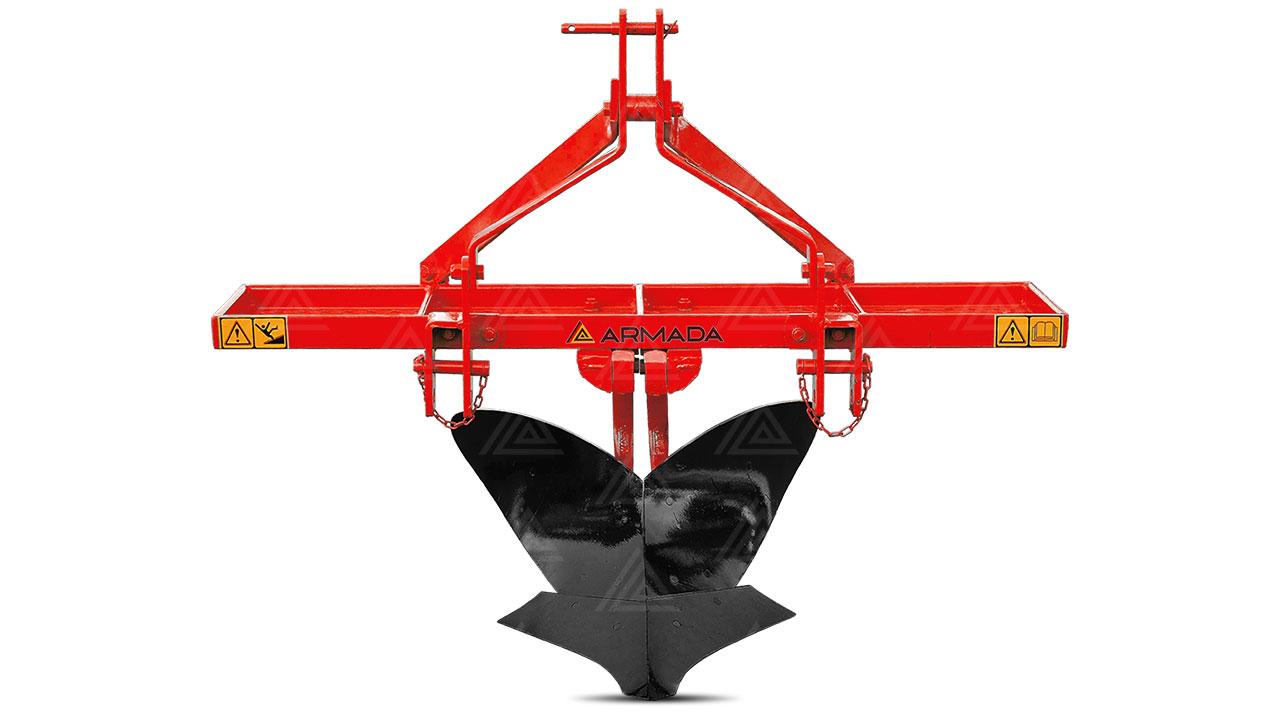

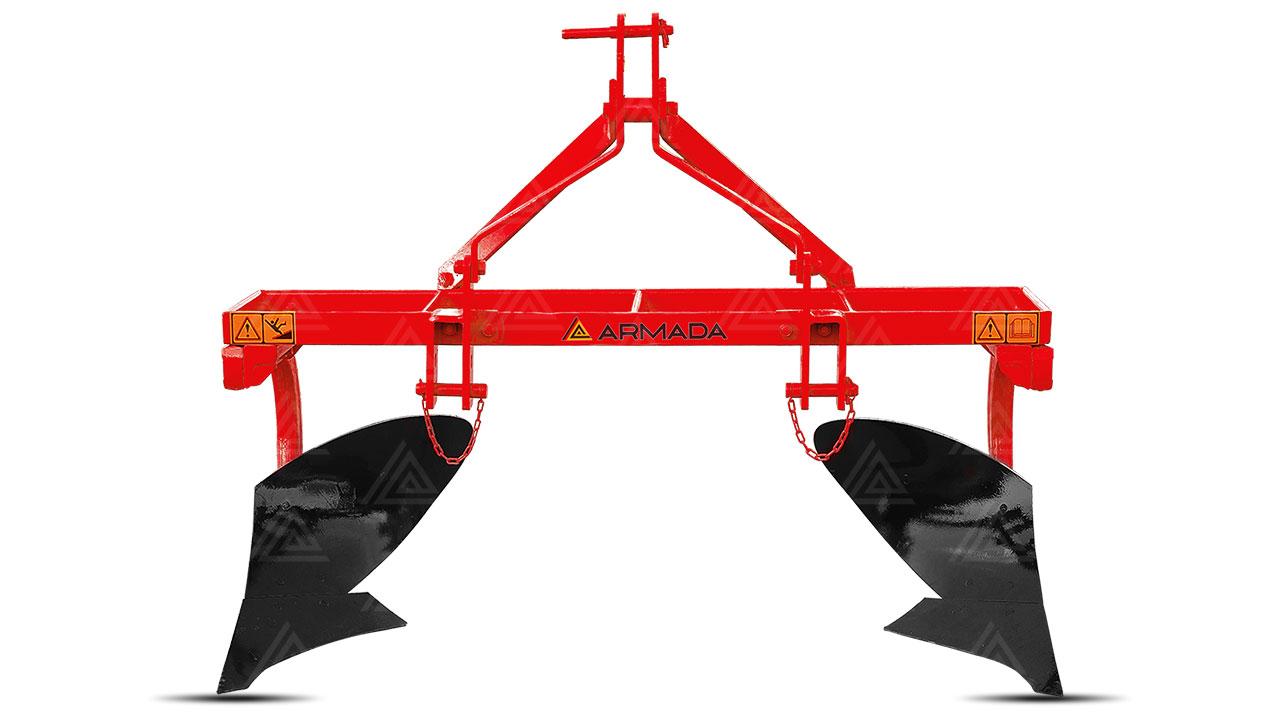

The primary soil tillage machine is mounted from tractor's hydraulic lifting unit and universal three point linkage system. Therefore transportation to the field can be easily done. The machine has an opportunity to open furrow or ridge as demanded wideness owing to its moldboard connection on the angle chassis. The usage aim of the machine is to make water channel, open furrows and make ridges between rows and ridging for row-planted seeds such as; corn, sunflower, cotton, etc. When moldboards meet in the center it is used as furrow opener and when changed the right and left moldboards in place of each other the machine used as ridger.

Technical Specifications*	Unit	SEYHAN 010	SEYHAN 012	SEYHAN 014	SEYHAN 016	SEYHAN 018
Number of The Disc	pcs	2	2	2	2	2
Total Width (W)	mm	950	950	950	950	950
Total Length (L)	mm	1700	1700	1700	1700	1700
Total Height (H)	mm	1300	1300	1300	1300	1300
Working Depth (max)	mm	220	260	280	300	320
Working Width	mm	1750	1800	1850	1900	1950
Space Between Bodies	mm	Adjustment	Adjustment	Adjustment	Adjustment	Adjustment
Required Power	hp	35-40	45-50	50-55	60-65	70-75
Weight	kg	245	249	255	260	355

SEYHAN

ARAS / ARAS F

Mouldboard Ridger Fixed and Foldable

ARAS T

Mouldboard Ridger With Wheel

CEYHAN

Single Mouldboard Ridger
